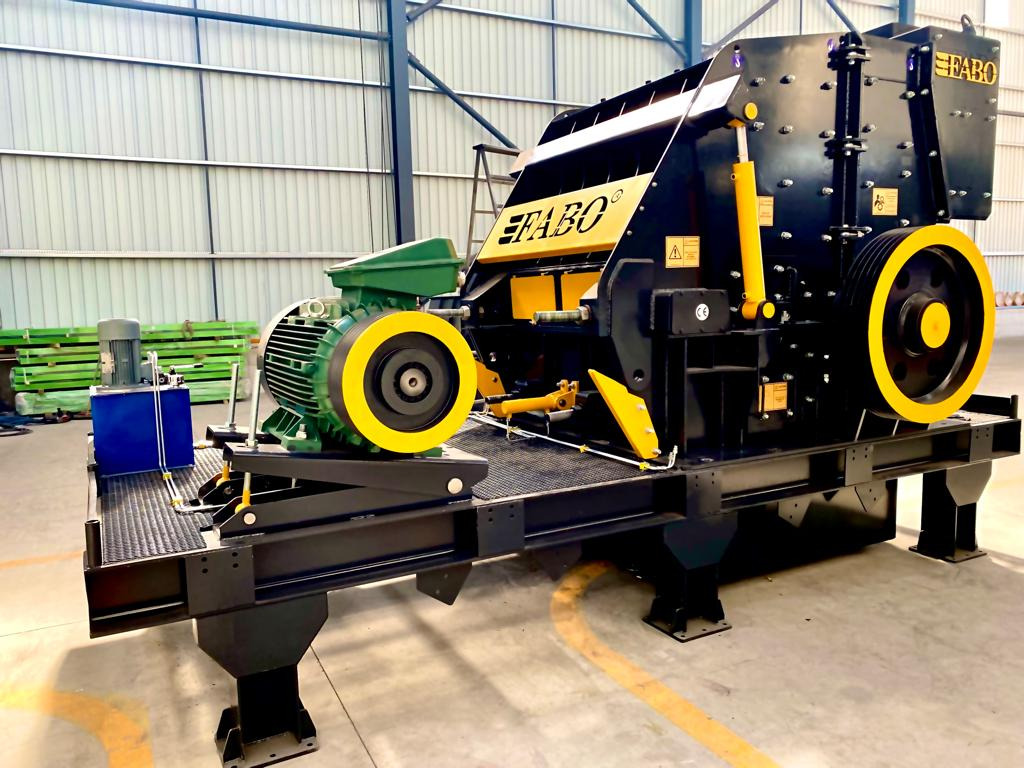

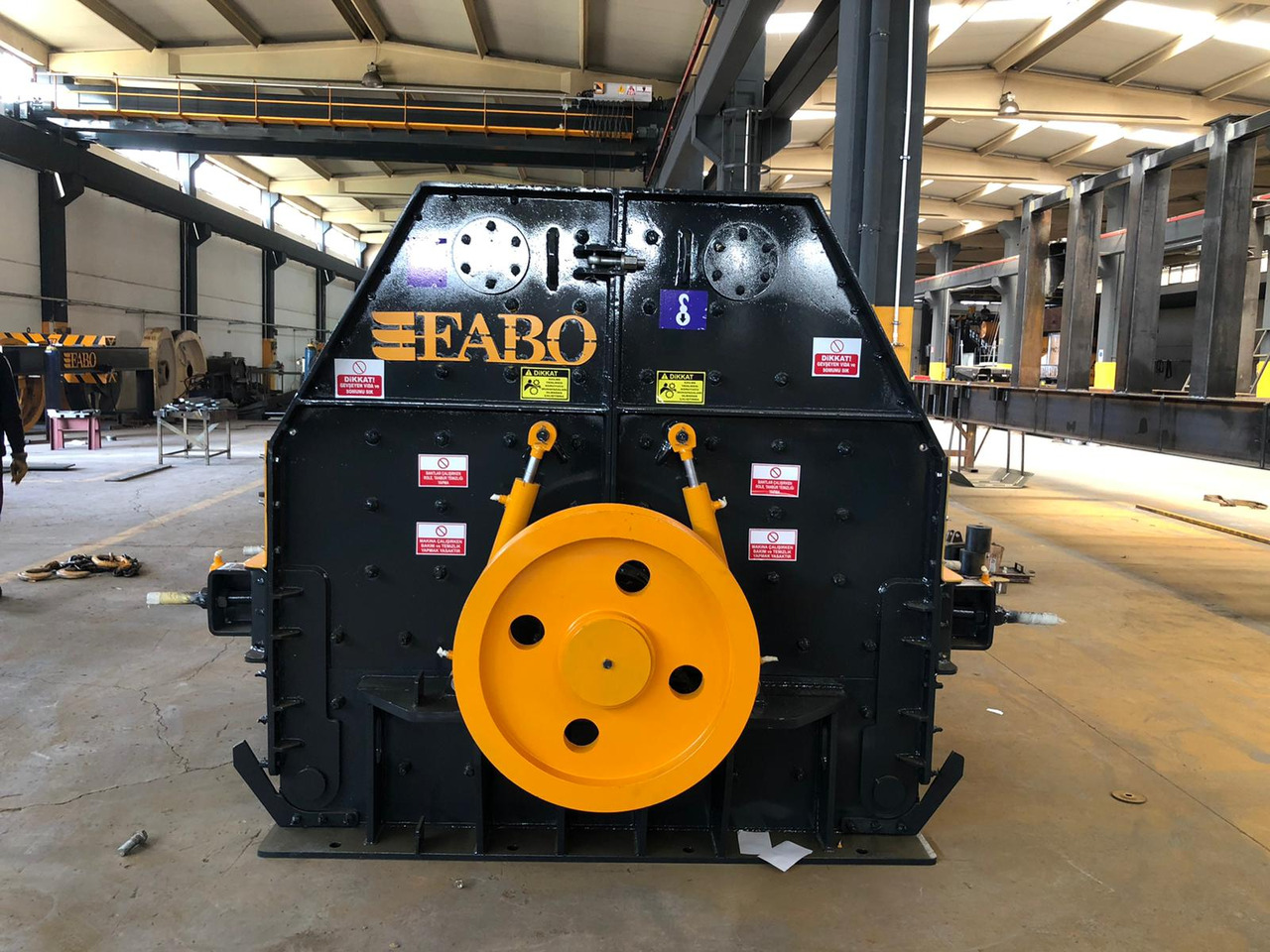

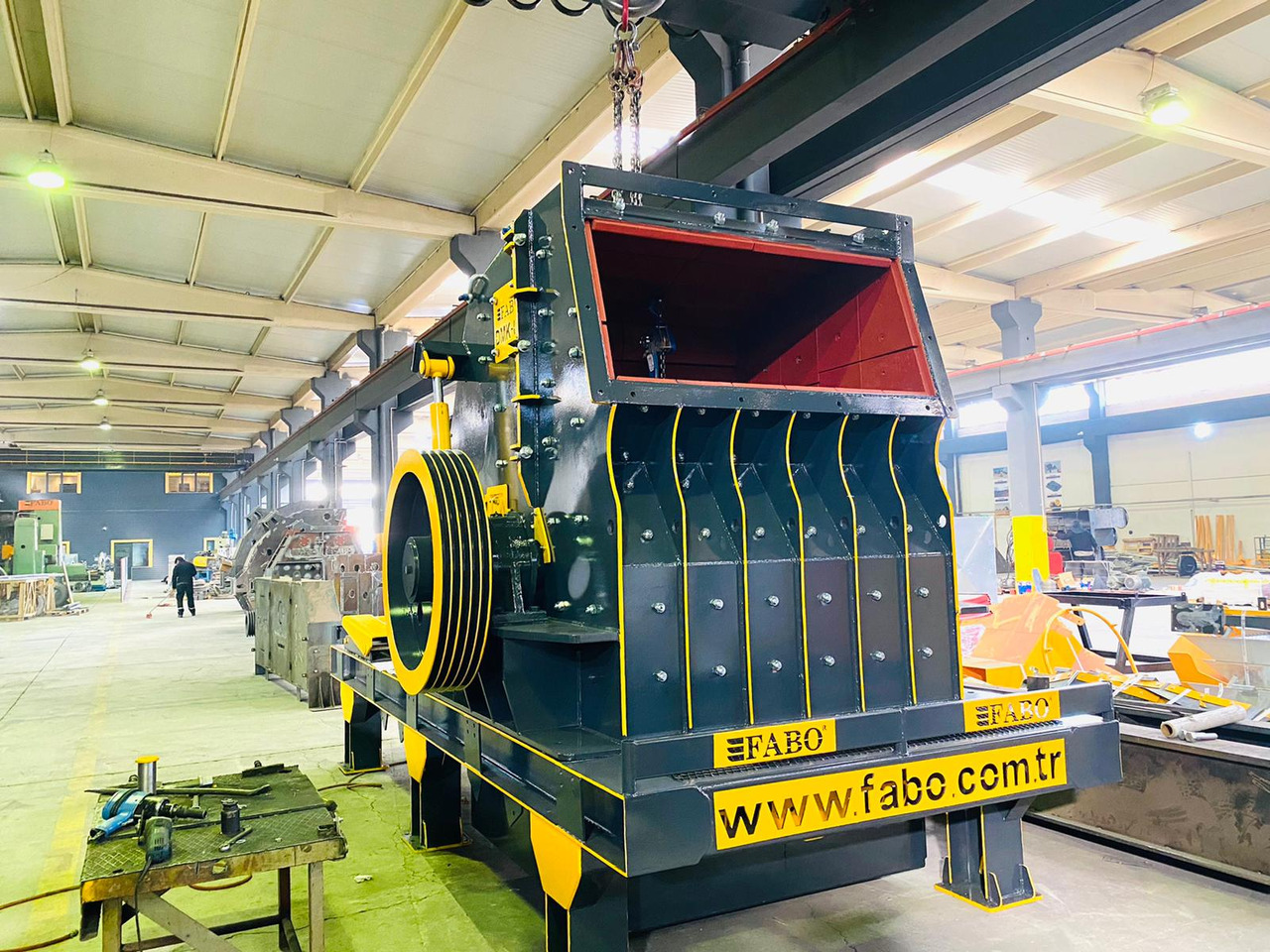

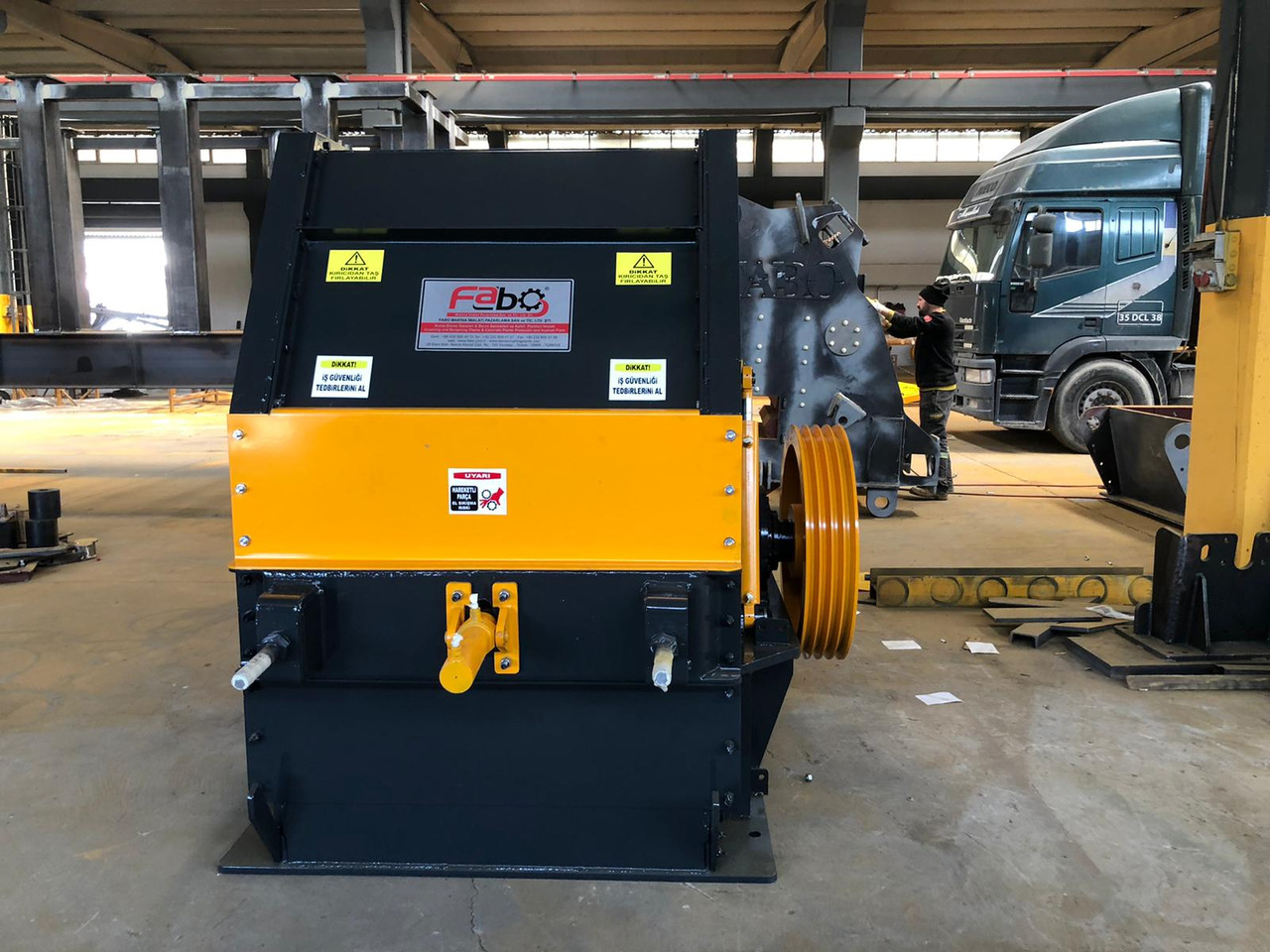

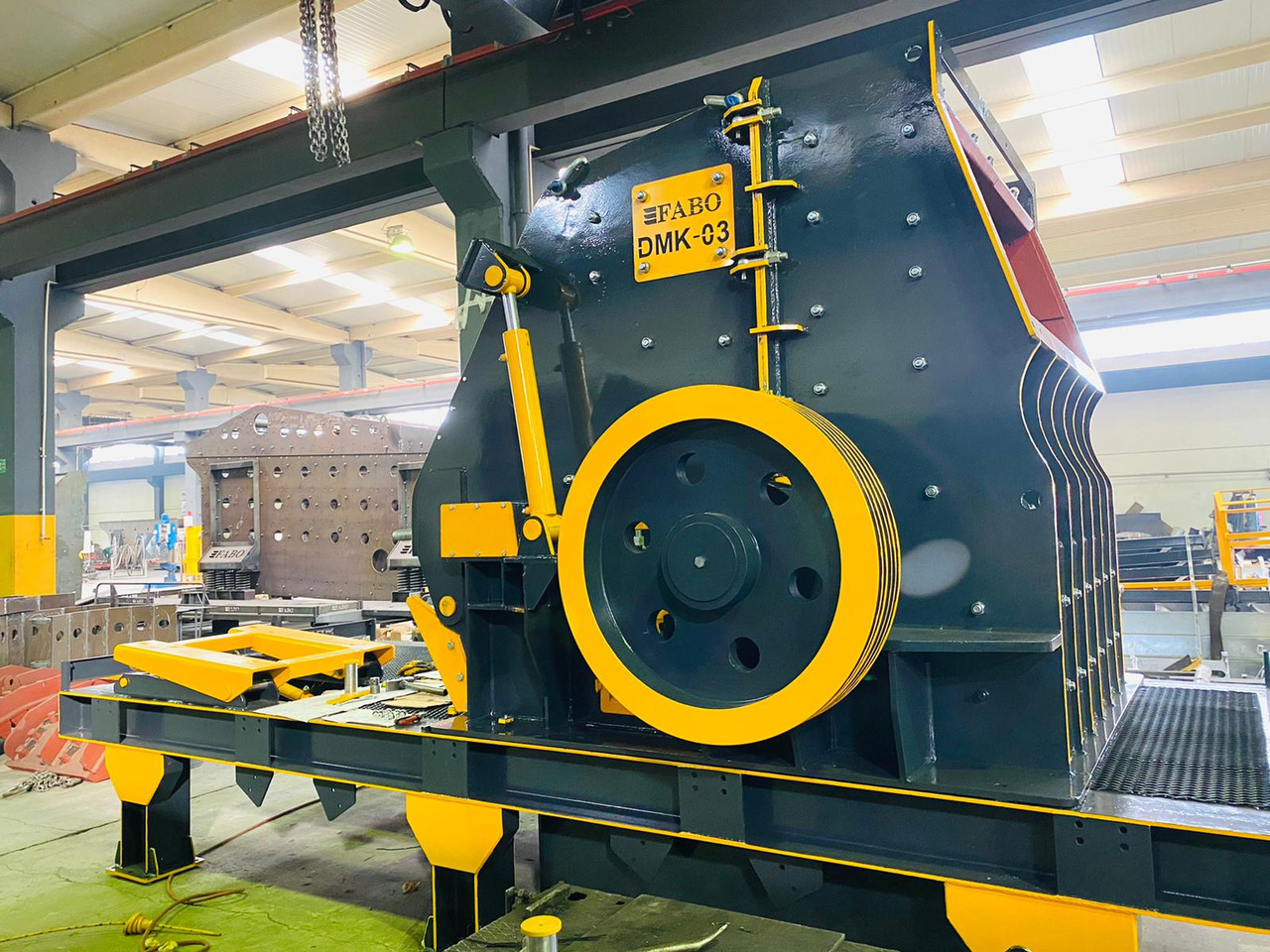

Új Röpítő törő FABO impact crusher

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

VSI machines are used to obtain fine sand and fine gravel from the hardest with a high degree of abrasive materials such as basalt, granite, gabbro, riverstone etc.

This type of crushers acting as tertiary crushers in facilities with with it’s high cubic ratio and fine product.

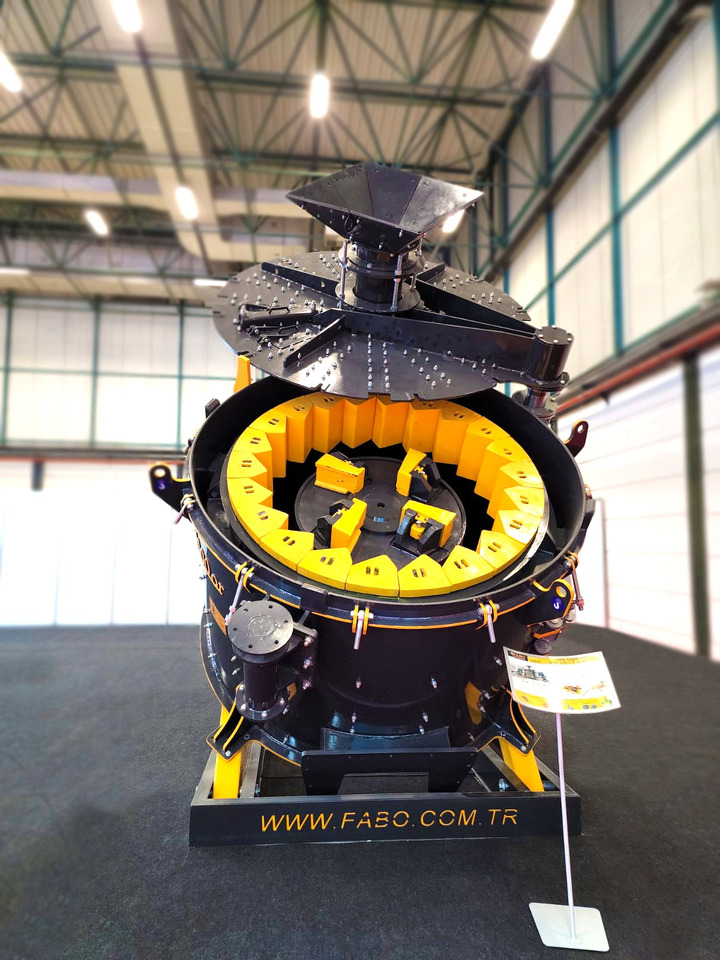

These high-speed crushers are manufactured in two different combinations as open rotor and closed rotor. Vertical shaft impact crushers (VSI) are designed with a unique rock-on-rock crushing principle, which significantly reduces the wear costs while offering superior cubical shape for the best quality fine aggregate production. The fact that it reduce their service requirements and times, and to increase their crushing performance with their low investment costs.

General Specifitions and Futures:

- Fine product, low wear cost, cubic shape, application flexibility and maintainability.

- Rotor and crushing chute with stress relieved welding

- Inner surfaces of the crusher is coated with wear resistant lining plates

- Hydraulic opening cap

-Automatic Lubrication system

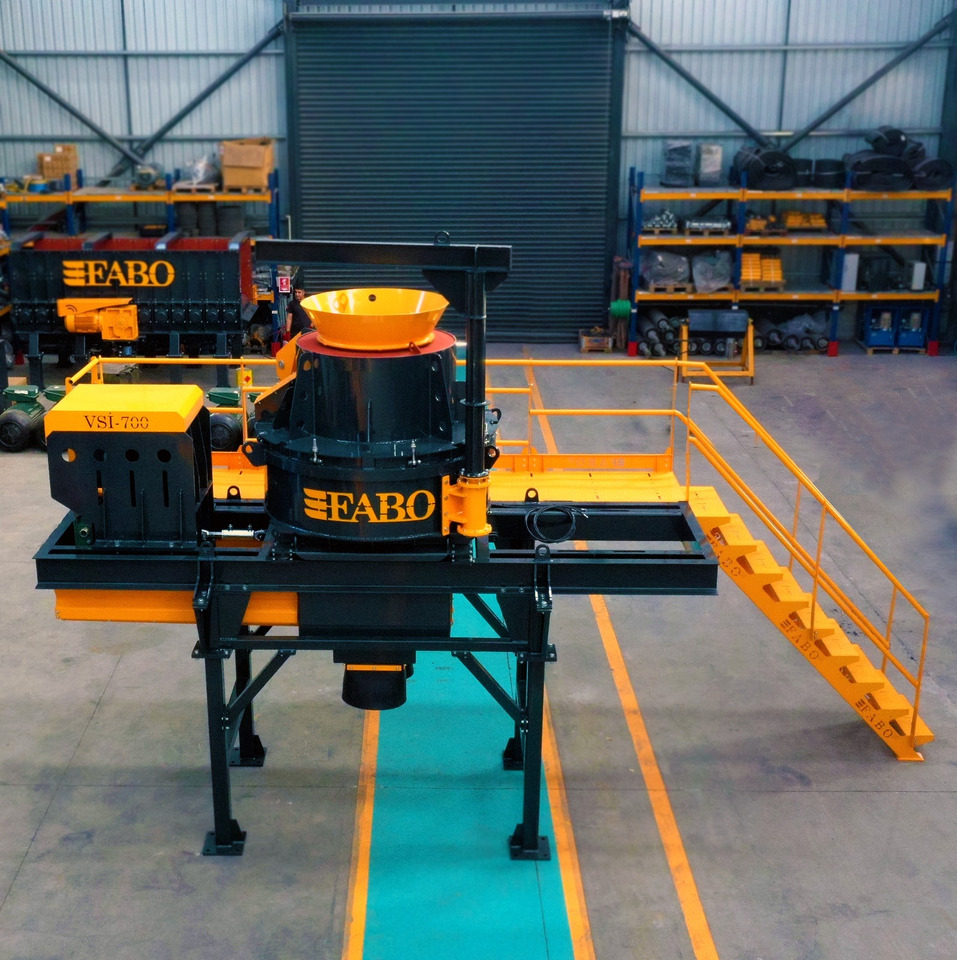

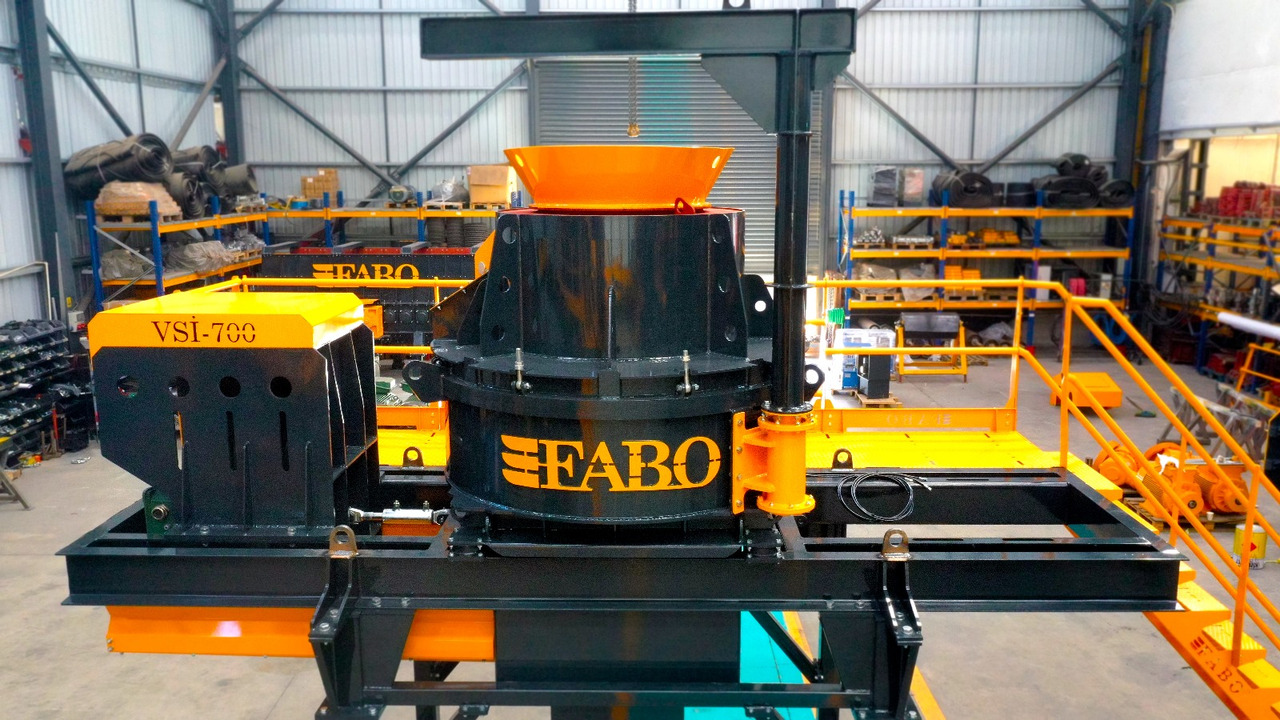

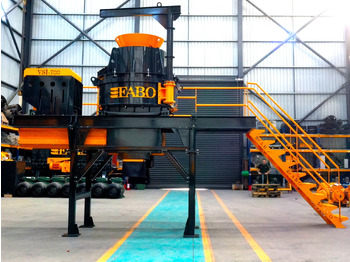

• Model: FABO VSI-700

• Type: Vertical Shaft Impact Crusher Closed rotor

• Capacity: 100-150 tph

• Max Feeding: 30 mm

• Rotor Size: Ø 700 mm

• Speed: 50-70 m/s

• Motor: Heavy duty GAMAK, 200 kW Bearings: Heavy duty SKF-FAG

• Weight: 10000 kg

• Dimensions: 4000 * 3000 * 2450 mm

• Including chassis, motor and safety guards.

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
