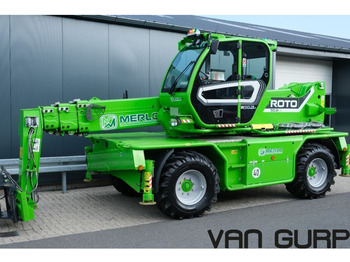

Rakodógép Merlo Roto 50.21S (40 km/h) | basket | winch | bucket | forks(CE & EPA) | 2020 | 870h |j

Additional options and accessories

• 3th hydraulic function
• Auto Power Off Switch
• Basket
• bucket
• bucket
• differential
• flashing light
• pallet forks
• Radio controlled
• Swing axle
• working light

Remarks

Price includes Work bucket, ground bucket and pallet levers.

Winch is optional for sale for €9950,-.

- Used equipment

- Year built 2020

- approx. 900 operating hours

- max. payload 4.950 kg

- max. lifting height 21.000 mm

- max. reach 17.900 mm

- Length to fork carriage 6,830 mm

- width 2,430 mm

- Height 3,07.0 - 3,120 mm

- Total weight with forks 15.800 kg

- Total weight without forks 15,630 kg

Engine

- 4 cylinder FPT NEF

- 4.5 l displacement

- water-cooled

- Power 125 kW/170 hp

- Stage V

- oxidation catalyst and SCR catalyst

with AdBlue injection and

particulate filter (DOC+SCR+DPF)

Hydrostatic drive

- Electronically controlled pump with variable

pump speed

- Displacement motor Mineral hydraulic oil

HVI46

- EPD base for electronic control of

motor speed and travel drive

incl. automatic speed increase on the

joystick

Gearbox

- 2 gears

- electro-hydraulically controlled

- Vmax = 1st gear/2nd gear = 11 / 20 km/h

optional 40 km/h

Cab

- closed cabin

- split door

- 360 degree panoramic view

- adjustable seat with safety harness

- heating

- Front, roof and rear wipers

- sunshade

- 5x1 electronic joystick with capacitive

release including directional switch

- Second electronic joystick in

left armrest V3520

Safety system

- Full electronic control of all

functions (ASCS)

Telescopic boom

- 4-part proportional extension via chains

Implement carrier

- Quick-change system type ZM2 can be operated

from the cabin

Level compensation

- hydropneumatic

- Automatic and manual adjustment

Supports

- 4 units

- Can be operated independently

- Extending and lowering functions

Turntable

- infinitely rotatable

- double ball bearing

Control

- hydraulic steering

- 3 steering positions

- four-wheel steering, front-wheel steering, crab steering

Drive

- permanent four-wheel drive

Axles

- Front axle fixed/manually adjustable

- Rear axle pivoting with automatic

locking

Braking system

- Disc brakes on all 4 drive axles

- Automatic parking brake with engine stationary

stationary engine

Frame

- Made of high quality steel

Hydraulic system

- Load sensing pump

- Total flow rate 138 l/min

- Working pressure 250 bar

- Flow distribution control block

- Mineral hydraulic oil HVI 46

Electric system

- 12 V

- Battery 160 Ah

- 120 A alternator

Stabilization control

- computer-controlled (ACSC system) with

permanent control and display

display

- Overload warning and shutdown

Tires

- 18-22.5

Platform preparation

- Standard equipment incl. ejector pump for

emergency discharge

Standard equipment

- 3x extra power supply 12V, 2,9A at boom head

- Preparation for permanent hydraulics on boom head

- V2003 Preparation for attachments with load

load limiter

- V0400 Preparation for platform

- V0404 Preparation for radio control

- V0420 Preparation for SPACE platform

- Preparation for toolbox

( upper carriage )

- V1000 tow bar, not for

public road traffic ( series in

combination with V1901 or V1903)

- V2510 radio preparation

- Lashing eyelets for safe transport

- 2 hydraulic connections on the boom head

- Electric connection cable in the boom head

- Road lighting

- Acoustic reverse signal

- Load protection grid on the tool carrier

- Lifting cylinder support for securing

- 1 wheel wrench

- 1 manual

- 1 engine manual

- Travel speed up to 40 km/h

More information

Type: Telescopic fork-lift truck

Field of application: Construction

Mast: telescopic (4 parts)

Mast length: 21 m

CE mark: yes

Technical condition: very good

Visual appearance: very good

Emissions class: Stage V
