Új Osztályozó berendezés FABO mobile screen - mobile screening

• All of our products are made with care and covered for 1 year warranty!
• Installation and Operator Training FREE

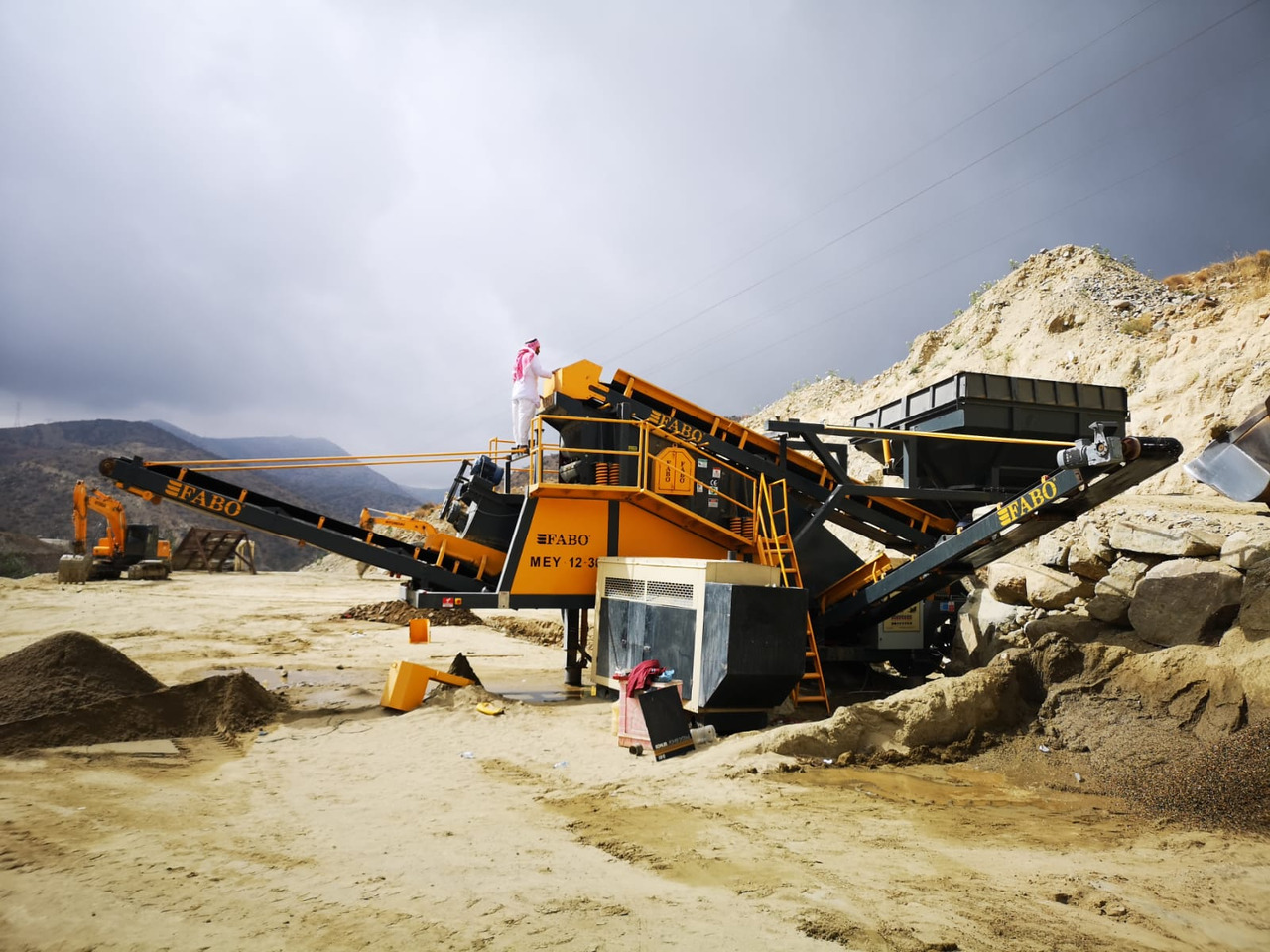

FABO MEY Series mobile sand screening and washing plant is an ideal solutions for the classifying and washing of materials which was provided as pre-crushed.

Most important advantage of plant is having all equipment on only a single chassis. Transportation can be done by only one truck.

TECHNICAL SPECIFICATIONS:

-Hopper: 7 m3

-Plant Dimensions: 12000x4500x3300 mm

-Production Capacity: 70-120 Tons Per Hour

-Screw Washer Size: 500x5000 mm Single Helix

-Vibrating Screen and Deck: 1200x3000 4 decks

-Total Motor Power: 50 Kw

-Generator (optional): 100 kvA

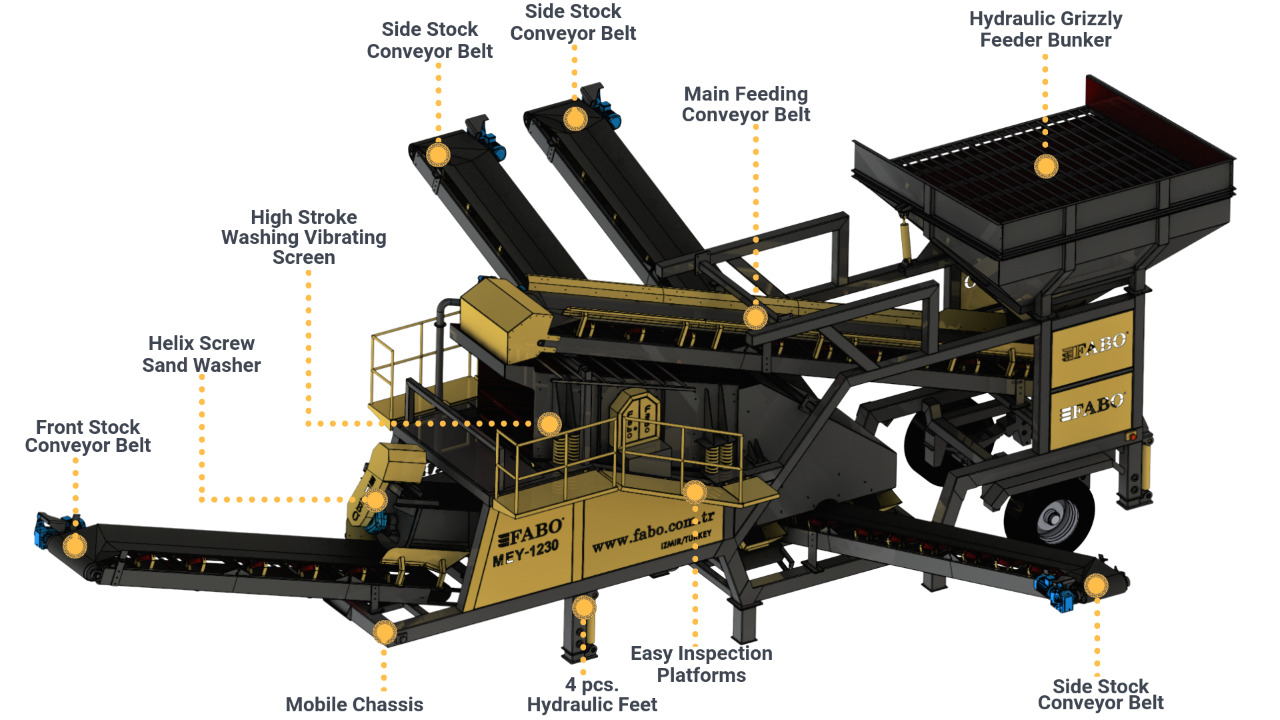

MEY-1230 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Screen with Washing Nozzle

• Single Helix Screw Washer

• Folding type feeding and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)

FOR FURTHER INFORMATION PLEASE FEEL FREE TO CALL US!!!
