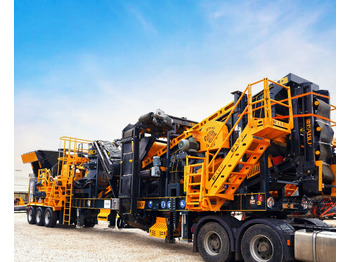

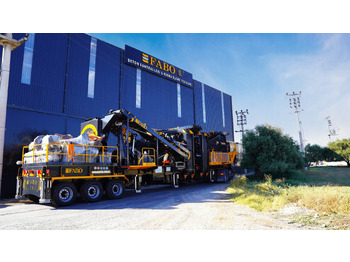

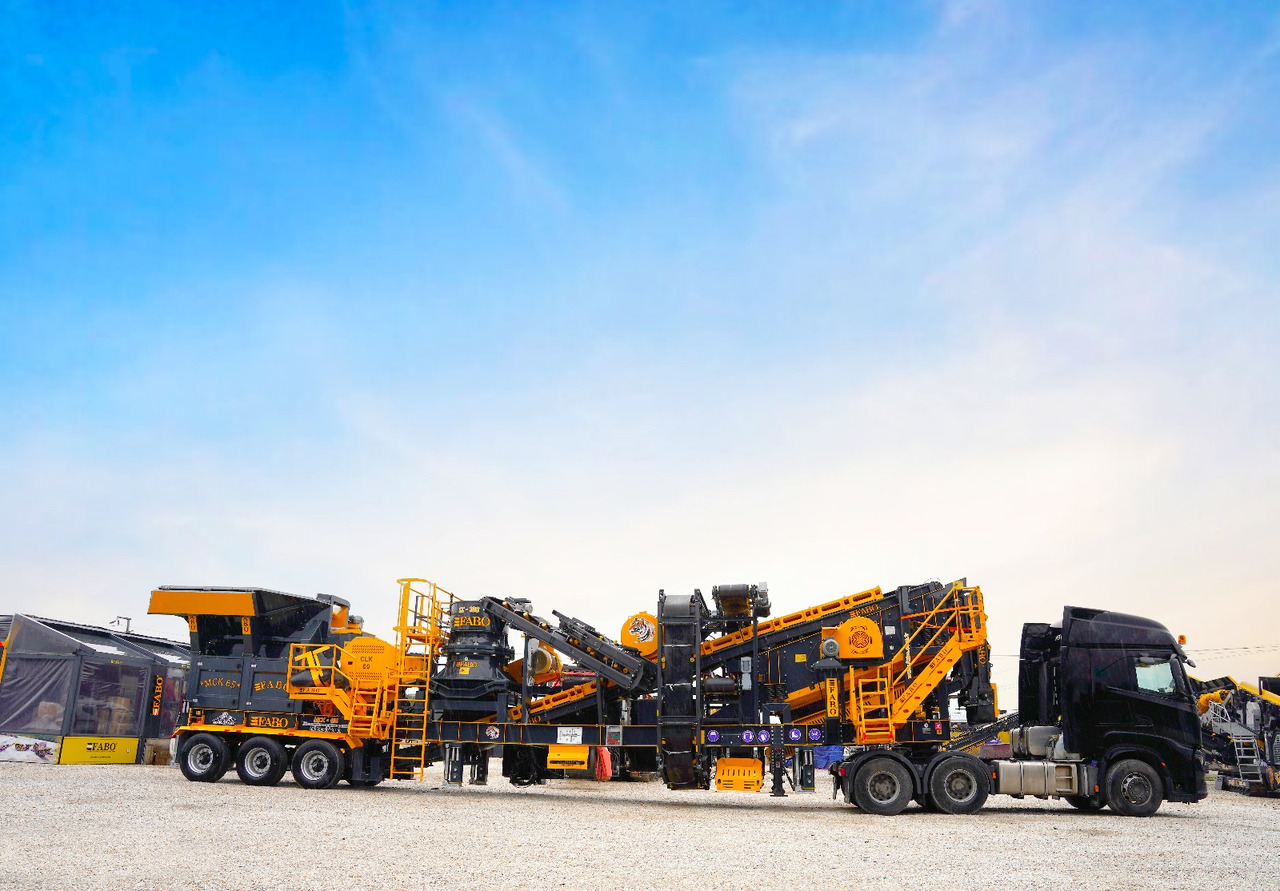

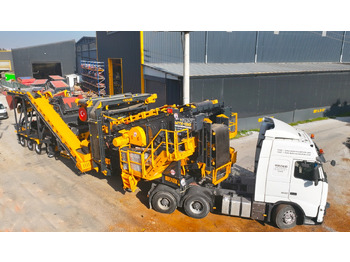

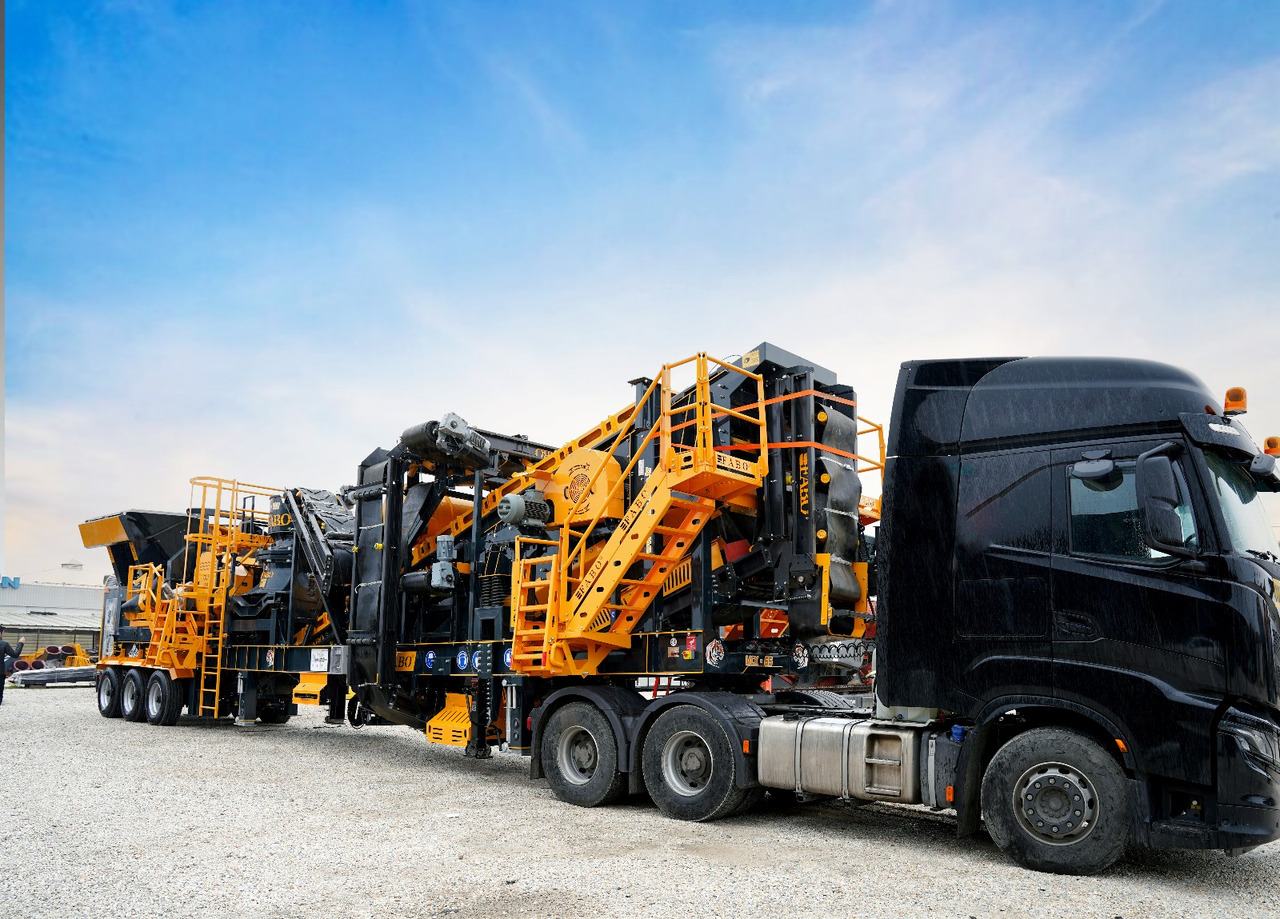

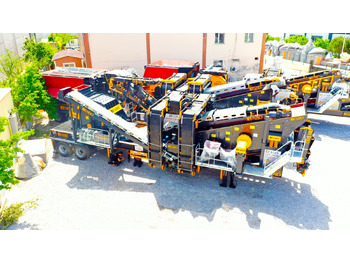

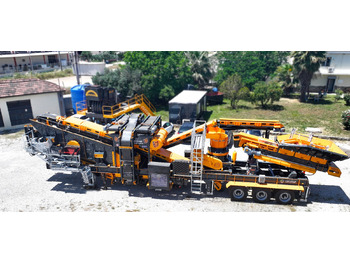

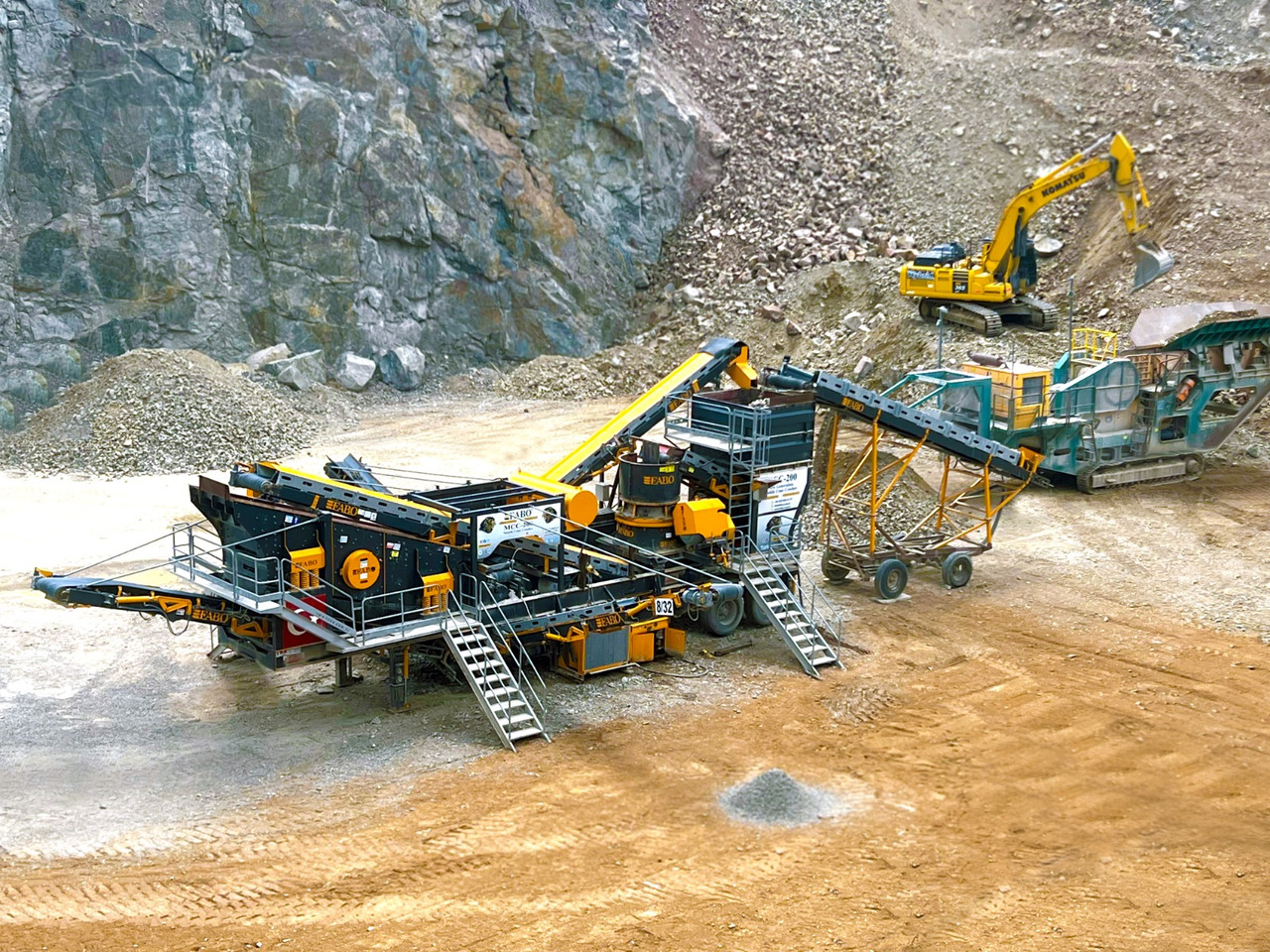

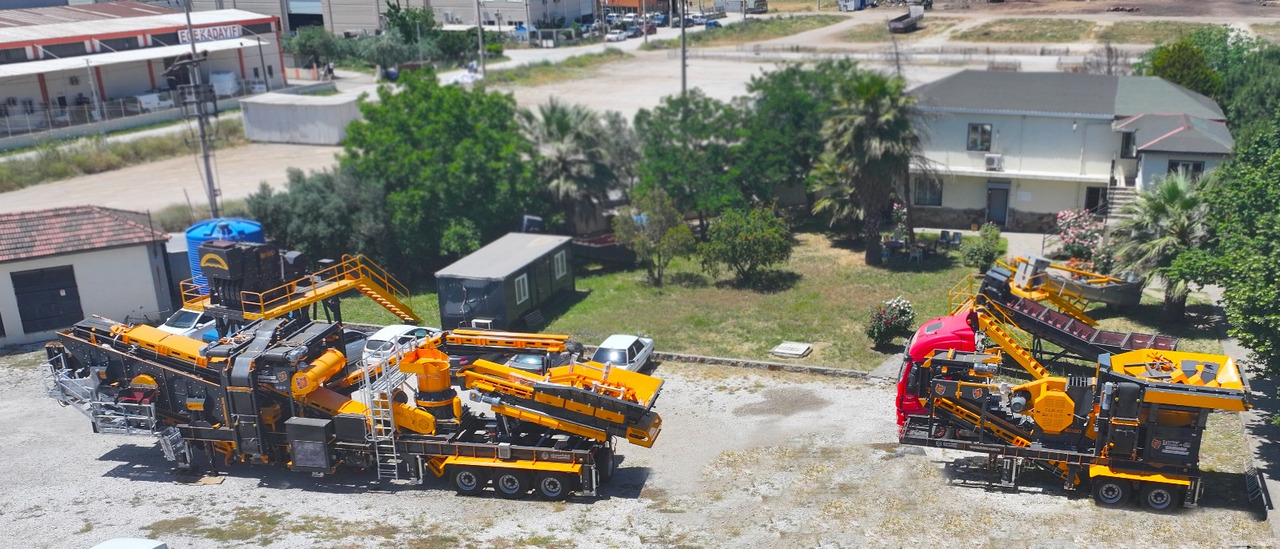

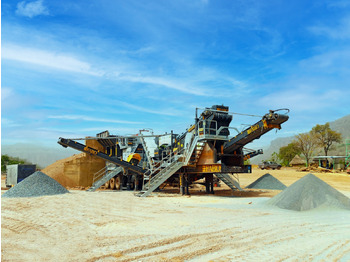

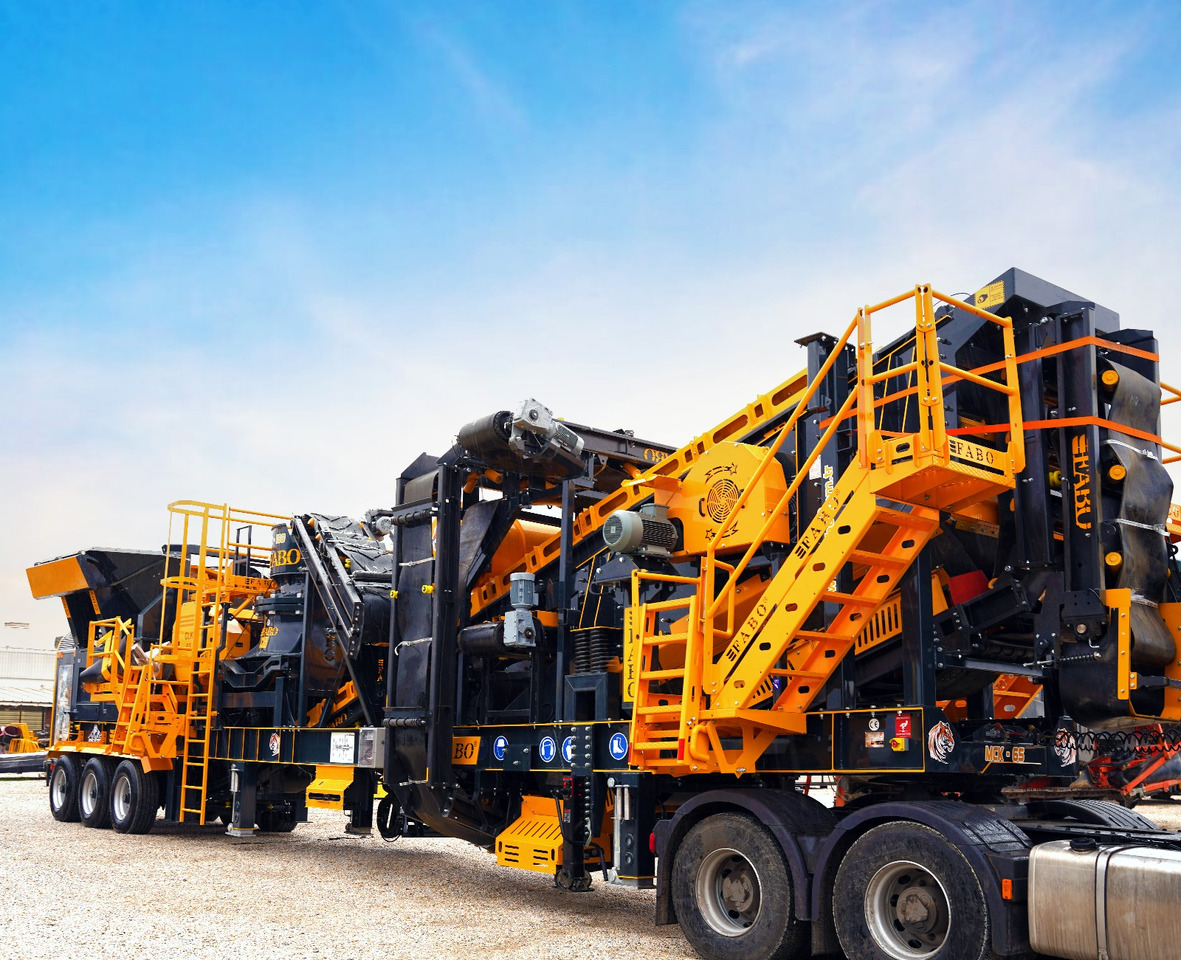

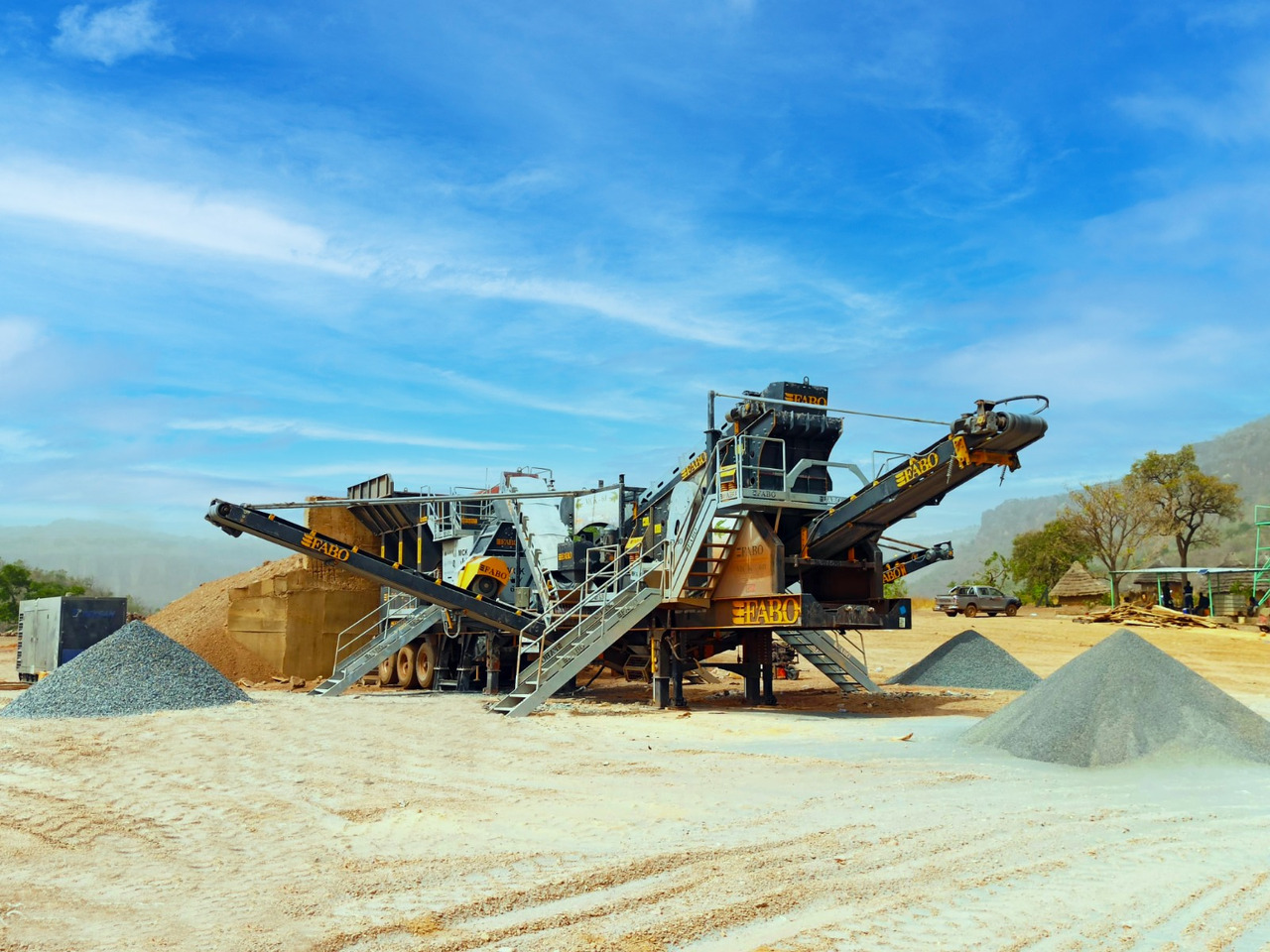

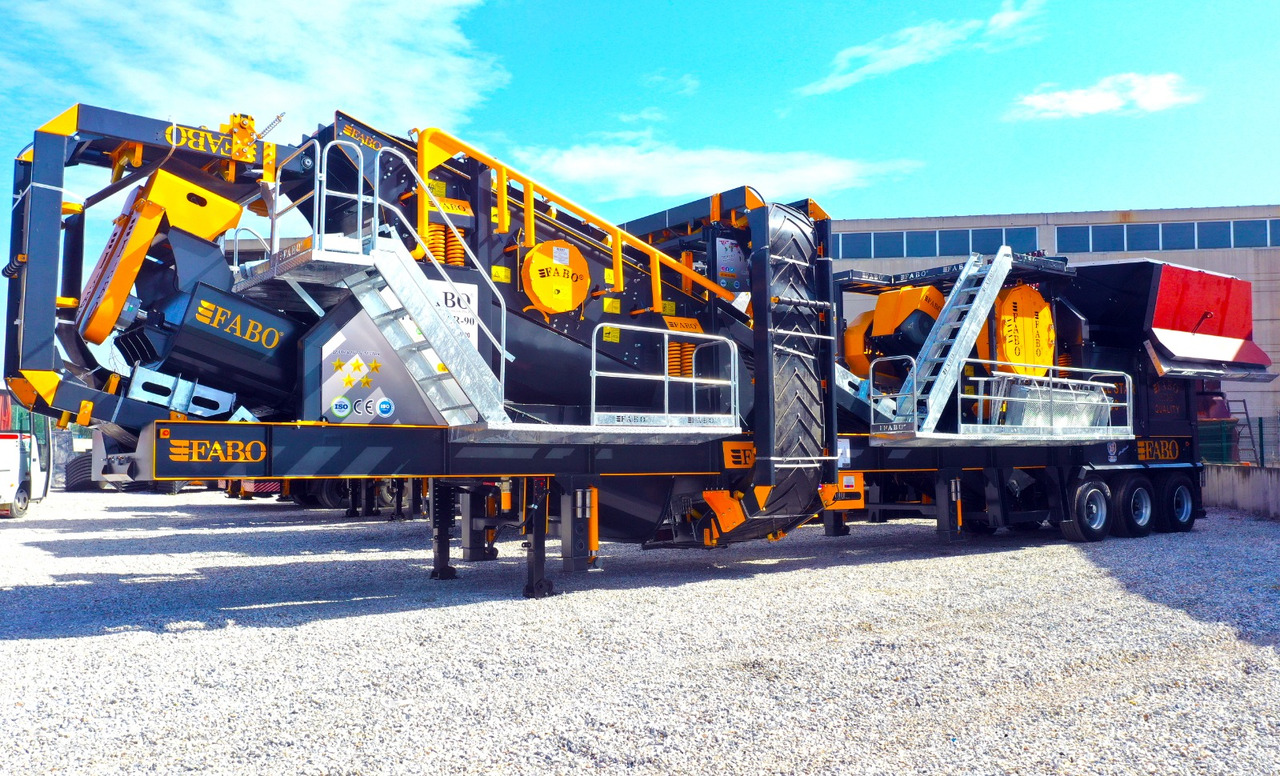

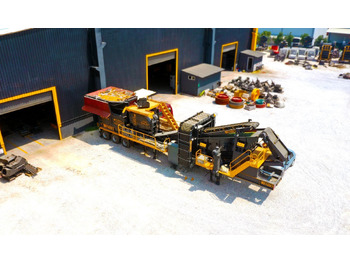

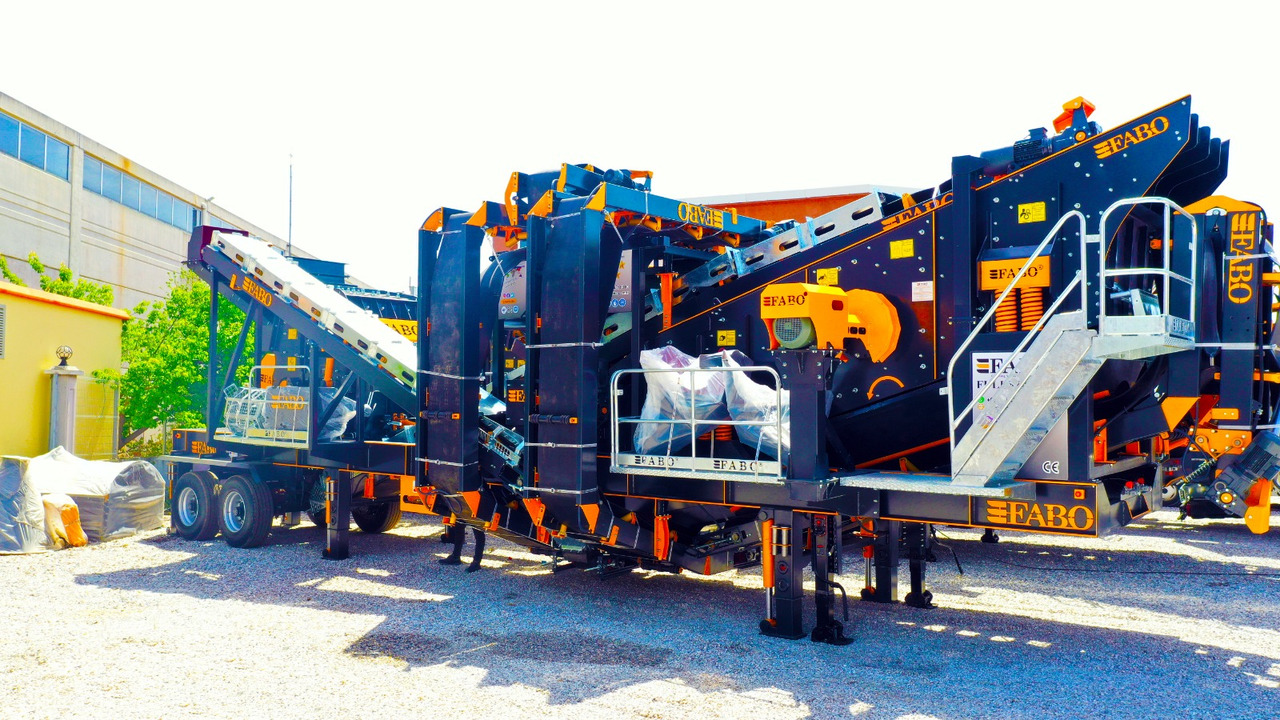

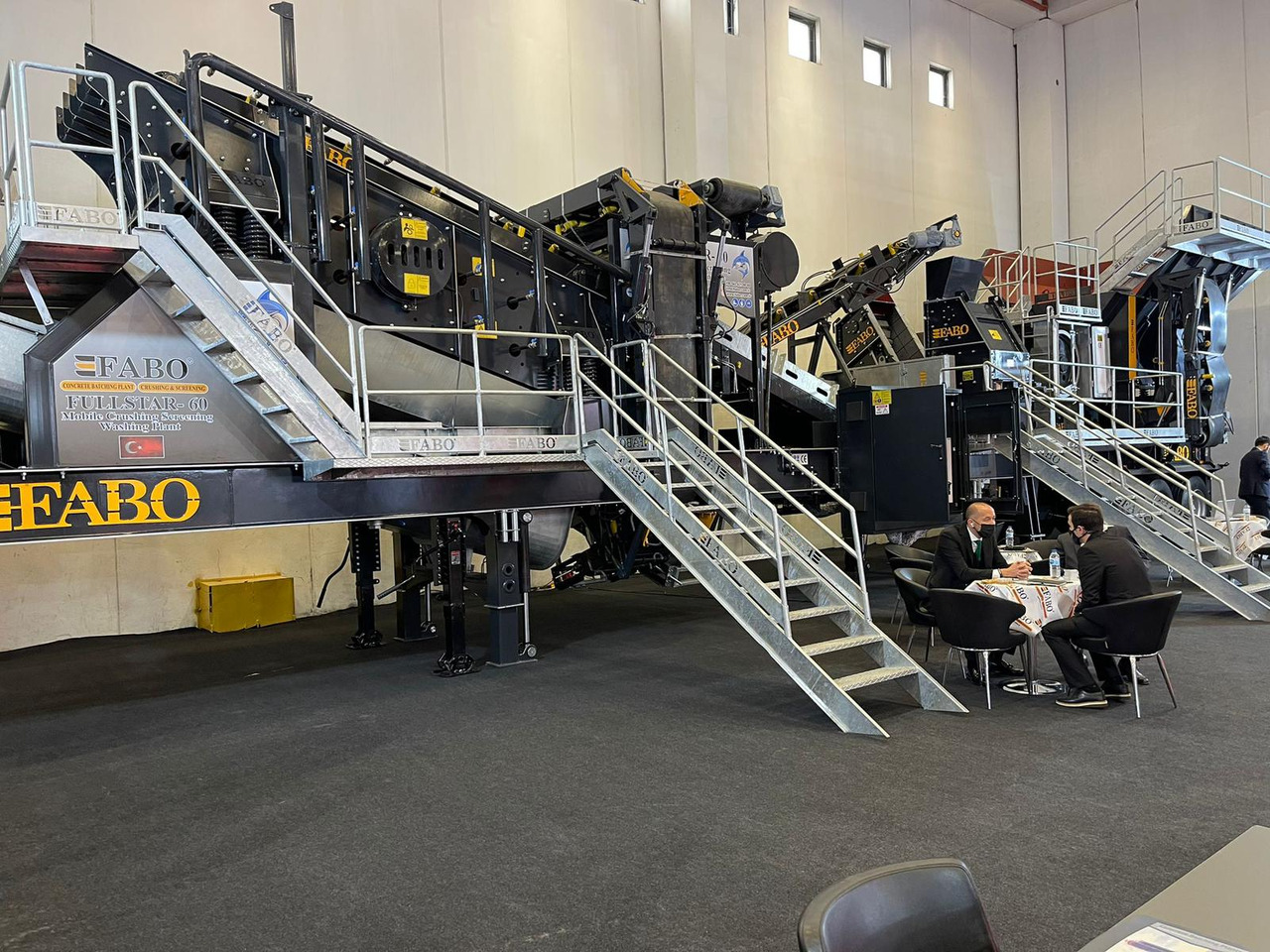

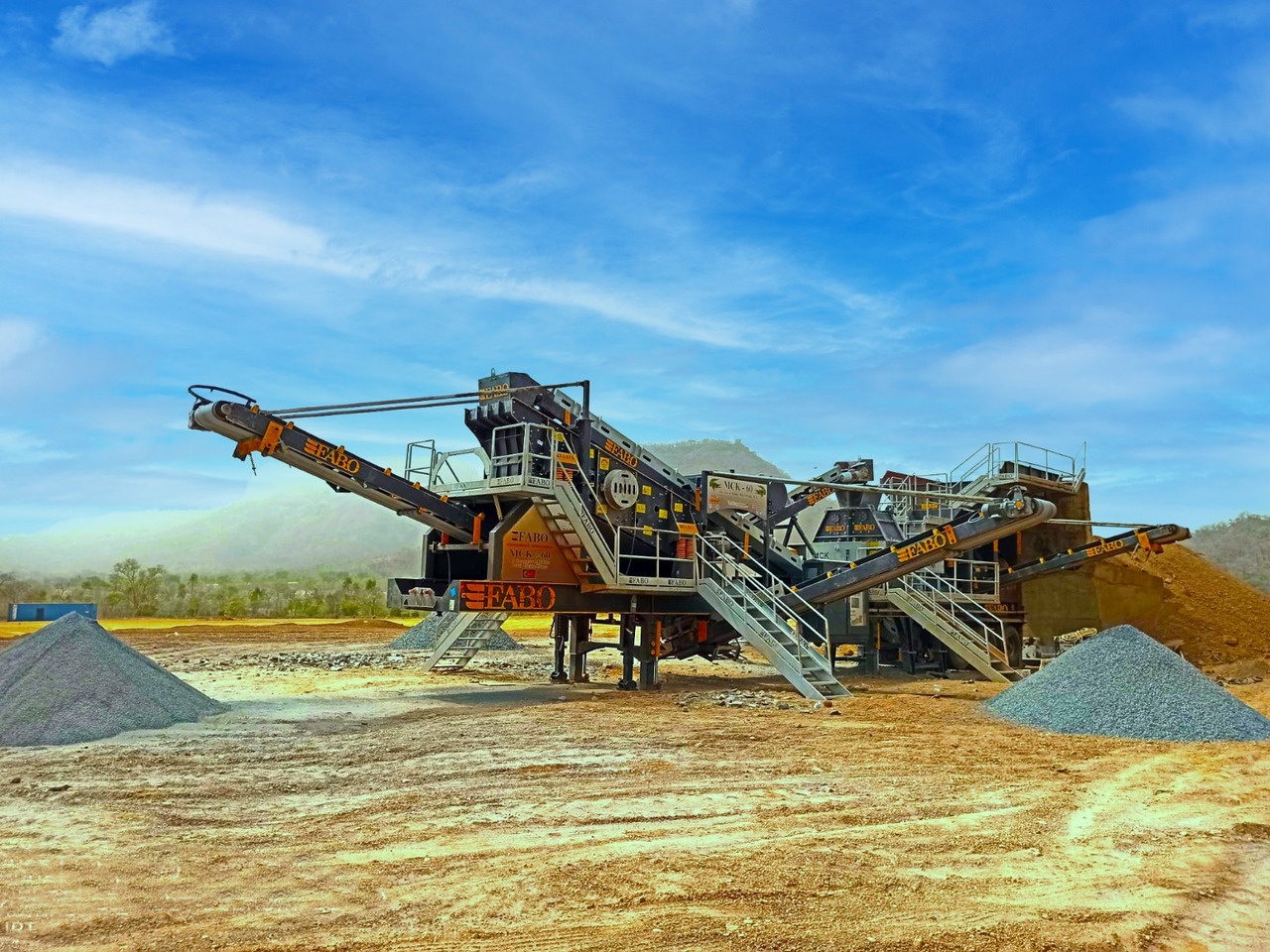

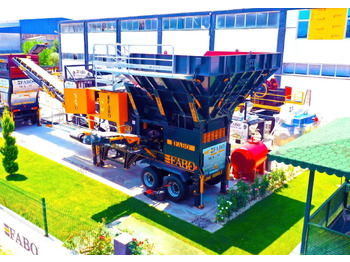

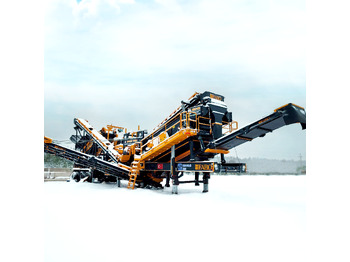

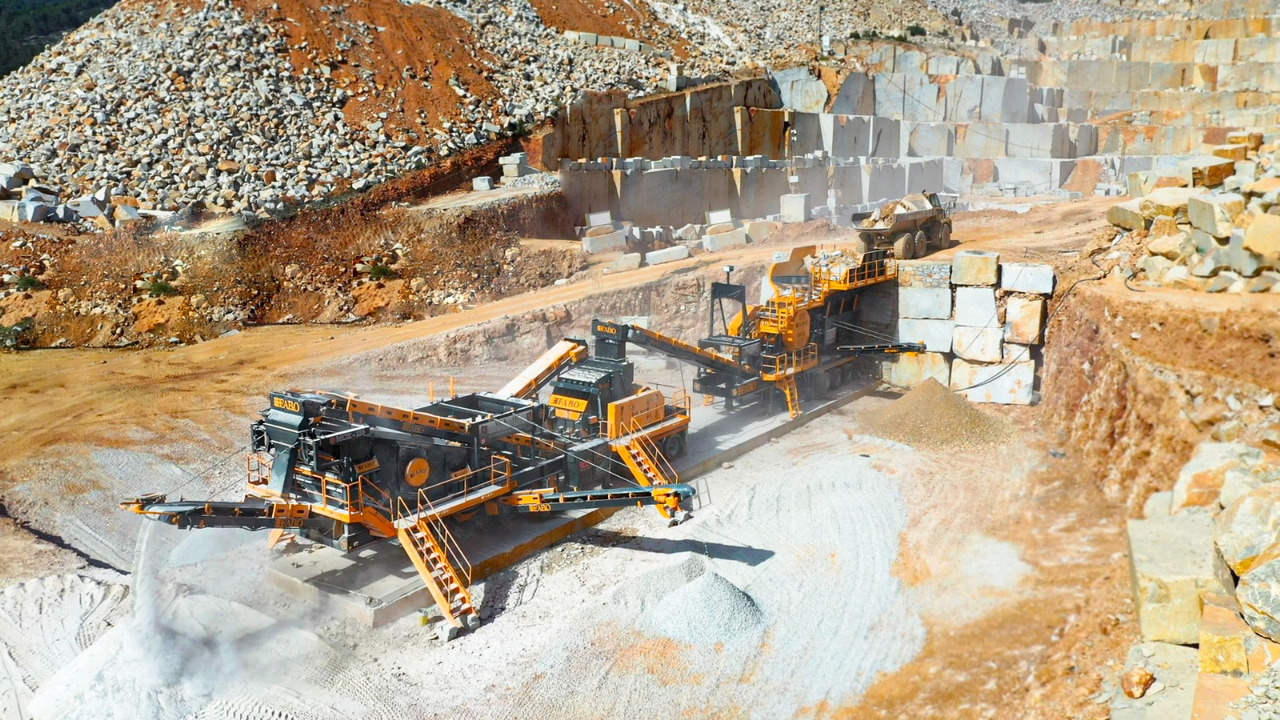

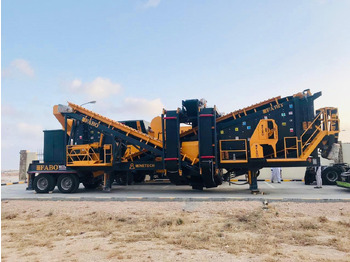

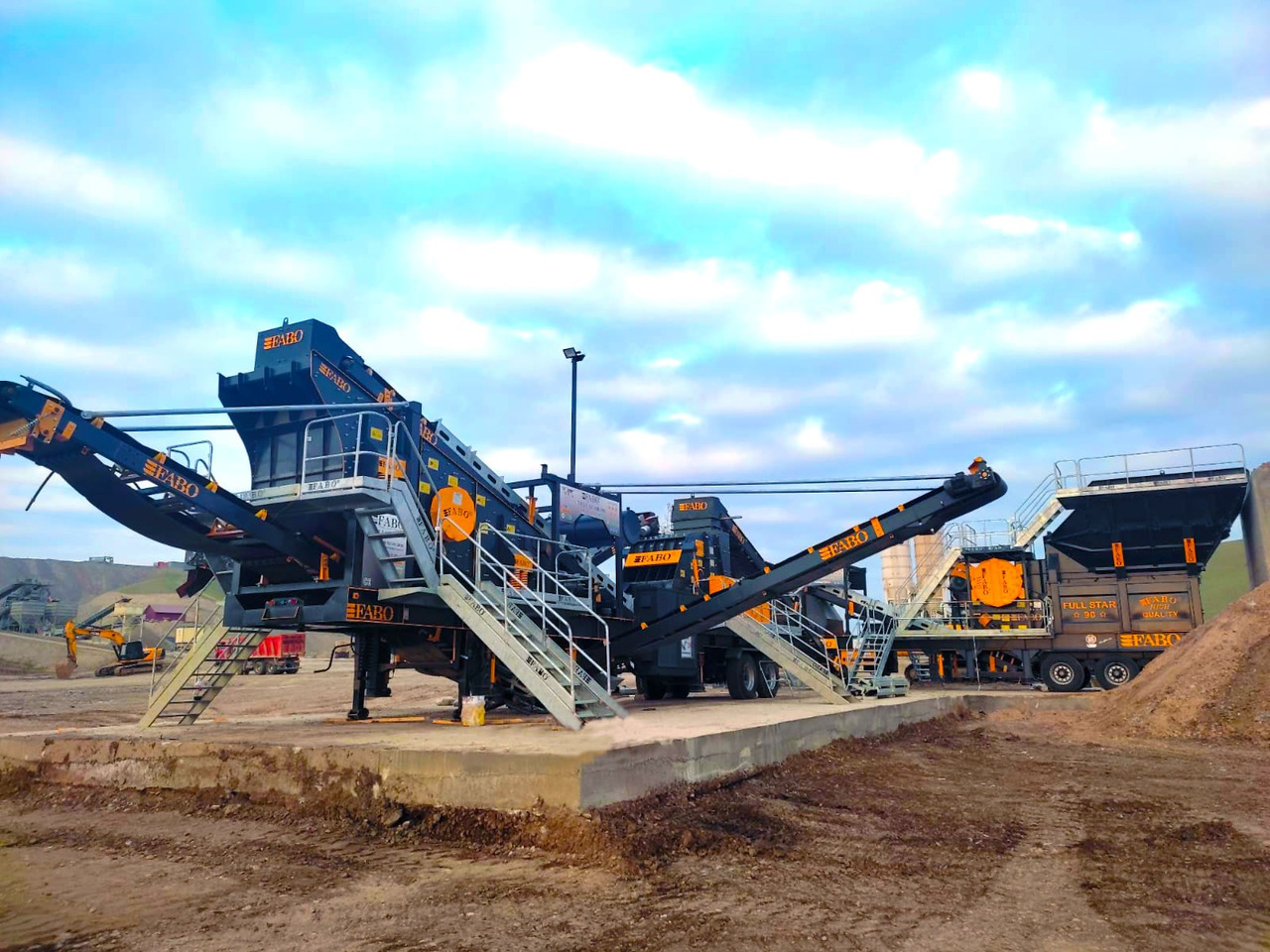

FABO FULLSTAR-60 is a mobile type plant which perform Crushing, Washing And Screening operations at the same time. This type of plant is very efficient as it is constructed on a single chassis, which reduces both plant operation area and manufacture cost.

TECHNICAL SPECIFICATIONS:

- Bunker: 15 m3

- Plant Dimensions: 21000x4650x4650 mm

- Production Capacity: 60-100 Tons Per Hour

- 1st Crusher: Primary Jaw Crusher – 600x400mm

- 2nd Crusher: Tertiary Impact Crusher – 1200x650 mm

- Maximum Feeding Size: 380 mm

- Vibrating Screen Size and Deck: 1300x4000 mm (3 decks)

¬- Screw Washer Size: 500x5000 mm (Single Helix)

- Total Motor Power: 232 Kw

- Generator (optional): 250 kvA

FULLSTAR-60 IS A COMBINATION OF:

• Bunker(Hopper)

• Vibrating Grizzly Feeder(Bypass)

• Primary Jaw Crusher

• Tertiary Impact Crusher

• High Stroke Type Vibrating Screen

• Screw Sand Washer (Single Helix)

• Folding type feeding, feedback, bypass and stock conveyor belts

• Hydraulic feet

• Mobile Chassis with axles and tires

• Fully Automation System

• Dust Suppression System

• Easy walking platforms for maintenance

• Diesel Generator (Optional)
