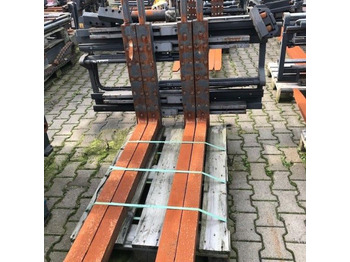

Raklapvilla Kaup Double pallet handler

Vorken (mm): Outside 1100X100X43 mm, Inside 1100100x40 mm (LXWXT) Bolt on

-

Capaciteit: 4080 KG @600mm LC

-

Staat: Gebruikt

-

Ophangklasse: FEM3

-

Hydraulische functies: 1

-

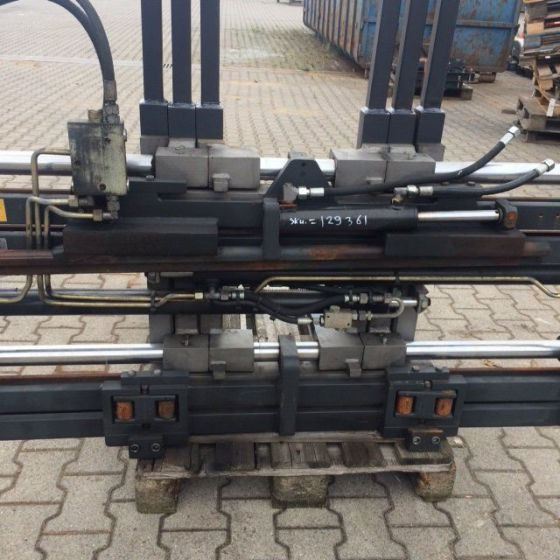

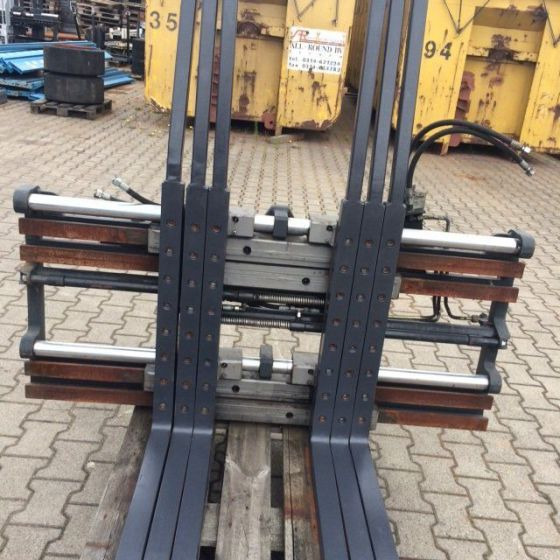

Kaup 3T429-2 Double pallet handler with Sideshift. Self weight 729 kg. Frame width 1400 mm. Lost thichness 213 mm. Own center of gravity 255 mm. Opening over forks 710-2210 mm, Forks Outside 1100X100X43 mm, Inside 1100x100x40 mm (LXWXT) Bolt on, Inner forks offset by 5 mm downwards, so that the loads are to tilt the middle and stabilize each other.Required run-in play: 45 mmFork bases on one levelThe distance between the pairs of forks is fixed at 710 mm above the outer edge.Fork back with lattice as a load system extended to 1415 mm in height and 5°inclined backwards.
